Insulation Laminates
NMN Laminates (Nomex + Polyester Film + Nomex)NMN Laminates (Nomex +Polyester Film + Nomex)
Saify Advance Materials is a trusted supplier of high-quality electrical insulation materials, serving a wide range of industries from Bangalore, India.
Overview

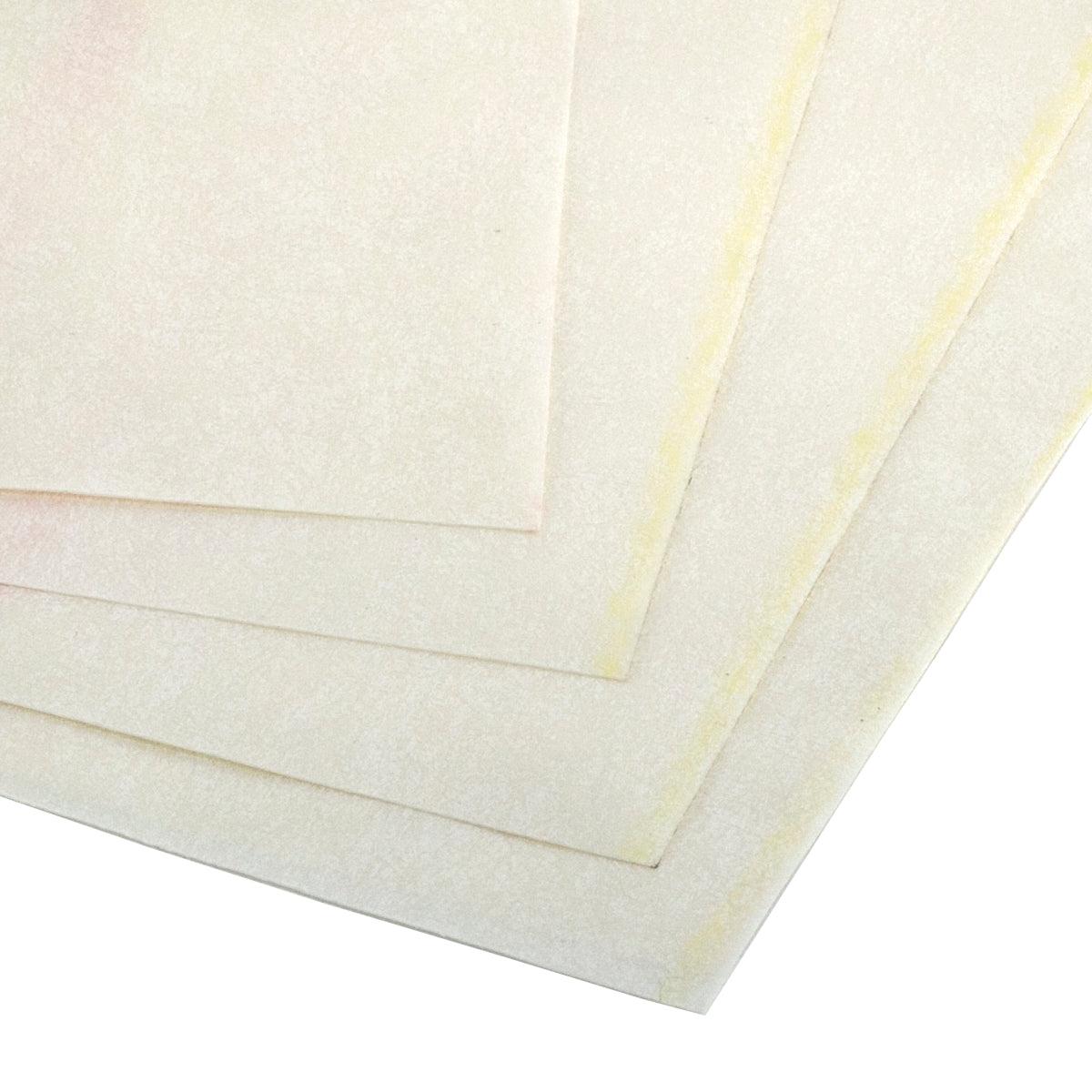

NMN laminates are high-performance flexible laminates made by bonding polyester film between layers of aramid (Nomex) paper. These laminates provide excellent thermal resistance, high dielectric strength, and superior mechanical durability, making them suitable for Class F (155°C) applications.
They offer improved thermal endurance compared to polyester-based laminates and are widely used in high-performance electrical insulation systems.
Technical Details
Thermal ClassF (155°C)
Thickness0.13-0.50 mm
Common Use Cases
— Electrical Equipment —
Motors:: Used for slot insulation, phase insulation, and coil wrapping in high-temperature motors
Transformers:: Used for interlayer insulation in dry-type transformers
— Electrical Insulation —
Phase Insulation:: Used for phase separation in motors and generators
Interlayer Insulation:: Used between winding layers in high-performance systems
